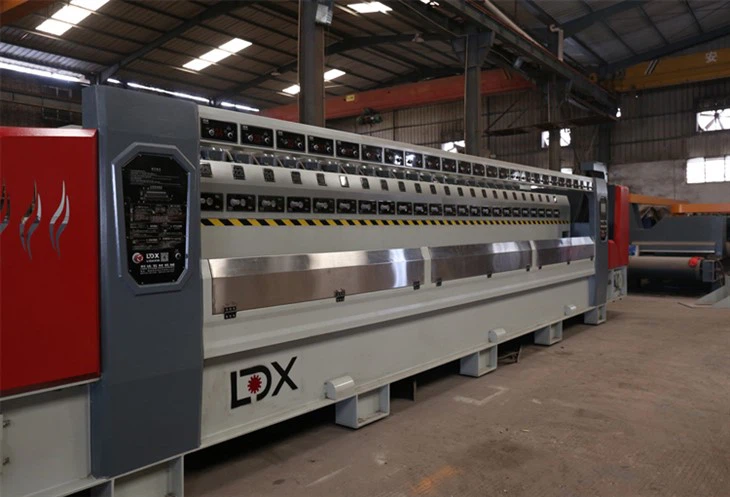

Functions of Automatic Continuous Rein Polishing Equipment:
It is used for continuous grinding and polishing of granite strips and meets particularly the demand of mass production and production of around 85°gloss slab
Machine production ability for reference:
Average for medium stone(width: 800mm, Length: 2000mm): 500~600 M2/8hours
Features:
I. There are 6 spring bring 6 stress point, which make the polishing process more stable.
II. Adopting the special slab sensors can recognize the flatness and shape of the slab to better polishing later.
II. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5KW power, its power consumption is one-thirds to two-thirds less than traditional continuous polishing machine.
IV. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen.
V. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with variable frequency adjustable speed system to adjust speed of lateral grinding and polishing of polishing head and speed of transmitting slab and to adjust them flexibly within set value.
|
Grinding/Polishing disks diameter of Automatic Continuous Rein Polishing Equipment |
￠260 |
mm |
|
Number of heads |
10,12,16,20,24 (customize available) |
pcs |
|
Max. processing width of slabs |
1250 (or customer size) |
mm |
|
Max. working thickness |
15~50 |
mm |
|
Moving speed of beam |
3~35 |
m/min |
|
Beam motor |
4 |
kw |
|
Water pressure |
0.1~0.15 |
MP |
|
Air pressure |
≥0.7 |
Mpa |
|
Belt speed |
0.5~4 |
m/min |
|
Belt motor |
1.5/2.2 |
kw |
|
Main motor |
No. x 7.5 |
kw |
|
Total motor |
Depends |
kw |
|
Water consumption/head |
≥25 |
L/min |
|
Gross weight |
Depends |
Ton |
|
Overall dimension (LxWxH) |
depends on heads no. |
mm |
Double Beam Reducer more stable
Standard Stainless Steel Worktable
More safe working in night
Automatic Slab Shape Detecting Device
Customized Bearing Pedestal
Q: Could we order the worktable more robust structure of the stailess steel?
A: Yes, of course, if your slab is very heavy and you have this requirments, it is ok for us, we could resend the quotation per your demands.
Q: Could we use the voltage with 220V, 50HZ, 2ph?
A: Sorry, it could not. As this is heavy duty machine, it needs 3ph power.
Q: Could we order one line machine for Automatic Continuous Rein Polishing Equipment?
A: This polishing machine could equipped with automatic slab suction loader & unloader, slab turnover machine, roller tables, stone calibrating mahcine, stone waxing machine, and etc as one flow polishing line.
