Features:
- Using remote control operation, flipping without slipping or reverse rotation
- The characteristics of easy operation, flexible and reliable use
- Mining control allows operators to operate far away from flipping waste materials and flip freely
- Using this device can improve flipping efficiency and greatly reduce costs for users
|
Model |
S-35 |
S-45 |
S-60 |
Unit |
|
Max. block weight |
35000 |
45000 |
6000 |
kg |
|
Max. block length |
3000 |
3500 |
4000 |
mm |
|
Max. block width |
2000 |
2300 |
2500 |
mm |
|
Max. block height |
2000 |
2000 |
2200 |
mm |
|
Turning degree |
0~90 |
n° |
||
|
Power of main motor |
3 |
4 |
7.5 |
kw |
|
Gross weight |
3500 |
4500 |
5500 |
kg |
English Foundation Drawing, Electric Drawing, English Manual

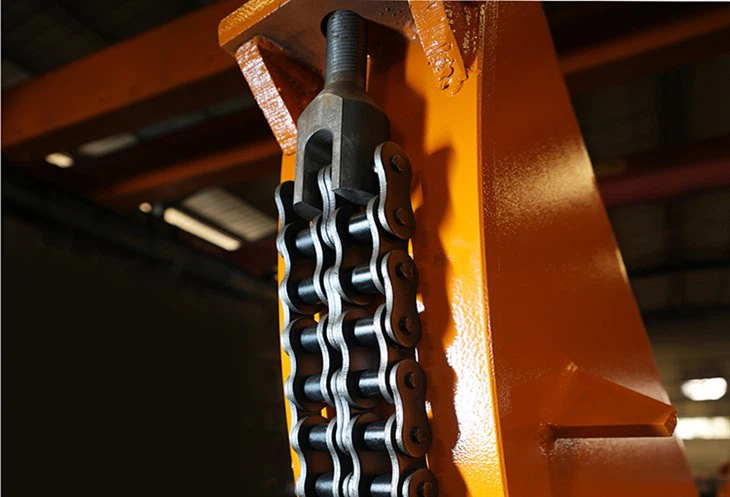

Strong structure, heavy Chain
Cable box
Q: What is the advantage of your Marble Block Turner Tilting Machine
A: We have the extend part to make sure it could load more bigger sizes of blocks and the motor fixed with strong structure. It has double chain for 45tons &60tons model.
Q: If we order the max. working weight 60tons, could it work smoothly uder the block 60tons?
A: Yes, it could work steadily with block max. working weight 60tons
Q: What language does your machine have ?
A: All the machines have both Chinese and English language.
Hot Tags: granite block turner tilting machine, China granite block turner tilting machine manufacturers, suppliers, factory, Block Turning Machine, 35 Tons Block Turning Machine, 60 Tons Block Turning Machine, 45 Tons Block Turning Machine, Other Stone Machine, Stone Block Turning Machine
