480mm Polishing Plate Heavy Duty Auto.Stone Slab Polishing Machine
Features:
- Using 380mm, 480mm polishing plate for stone strip/tile and slab surface
- 7pcs abrasives per head and 5pcs abrasives per head are available for choose
- Slab shape detacting device and head automatic avoid system
- Big touch screen make details clearly and simply in the man-machine coversation surface.
- Electric parts are of worldwide brand, PLC control system and friendly human - machine interface via LCD to achieve computerized control.
- Automatically detect the slab profile by laser scanning device.Sensitive collision avoidance of polishing head.
|
Description |
Unit |
LDX-8T |
LDX-10T |
LDX-12T |
LDX-16T |
|
Dia. of polishing disk |
mm |
380/480 |
380/480 |
380/480 |
380/480 |
|
Heads No. |
Pcs |
8 |
10 |
12 |
16 |
|
Max. processing width |
mm |
2200(customized) |
2200(customized) |
2200(customized) |
2200(customized) |
|
Beam swinging speed |
m/min |
3-35 |
3-35 |
3-35 |
3-35 |
|
Beam motor power |
kw |
2.2KWX2PCS |
3KWx2pcs |
3KWx2pcs |
4KWx2pcs |
|
Water Pressure |
mpa |
0.1-0.15 |
0.1-0.15 |
0.1-0.15 |
0.1-0.15 |
|
Air pressure |
mpa |
≥0.7 |
≥0.7 |
≥0.7 |
≥0.7 |
|
Conveyor belt speed |
m/min |
0.5~4.0 |
0.5~4.0 |
0.5~4.0 |
0.5~4.0 |
|
Motor power of conveyor belt |
kw |
2.2 |
3 |
3 |
4 |
|
Main motor power |
kw |
11/15KW |
11/15KW |
11/15KW |
11/15KW |
|
Total power |
kw |
126.6KW |
159KW |
189KW |
252KW |
|
Water consumption |
L/min |
≥20 |
≥20 |
≥25 |
≥25 |
|
Overall size |
mm |
7355X3680X2510 |
8435X3680X2510 |
9515X3680X2510 |
11675X3680X2510 |
Detail Display
1,Strong Casting I Steel as the worktable frame
2. Using international famous electronics and pneumatic components such as Mitsubishi PLC, Yaskawa Inverter, Simens Contactor and etc.
3,Using auto lubrication system to increase life of spindle box.;
4,Using brake motor to protect crossbeam from damage under sudden electric cut.
5,Using Taiwan Airtac cylinder with super waterproof and dustproof function for atrocious conditions.
Double Beam Reducers Running Stable
Q235 More Durance Strong Structure Worktable

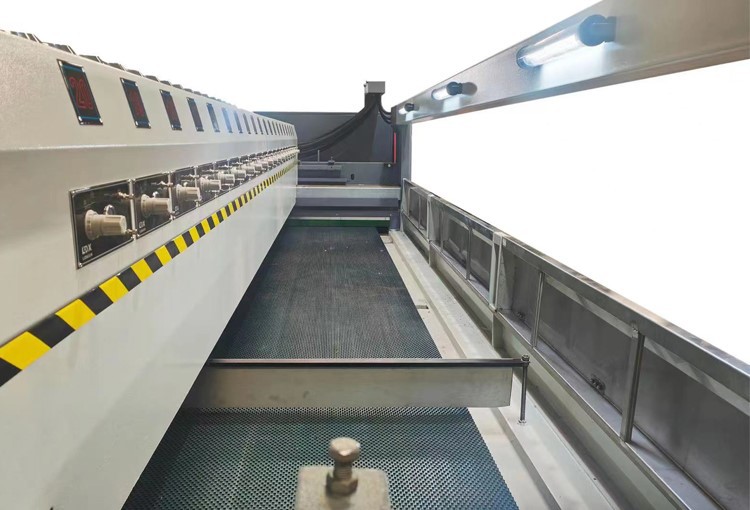

Lightening

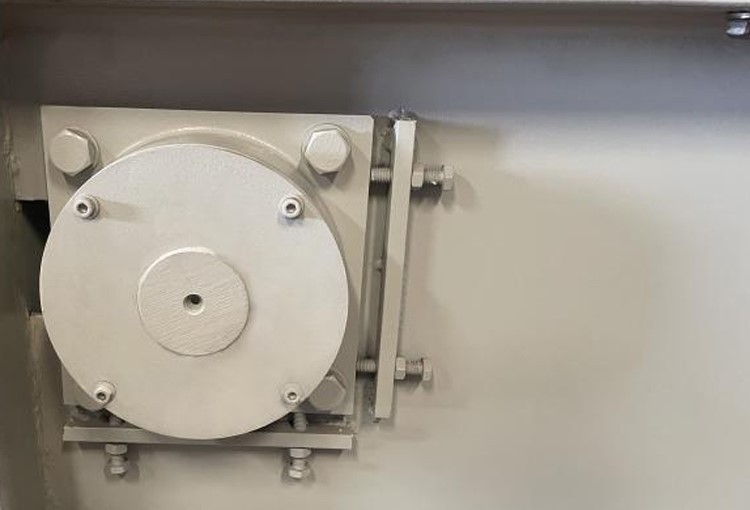

Customized Bearing Pedestal (Front)
Automatic Slab Shape Detecting Device
Customized Bearing Pedestal (Back)
Q: Which kind of polishing plate we could use?
A: For slabs, we suggest to use 480mm plate, if for strip or tile, we recommend to use 380mm plate with 5pcs abrasives
Q: Which location to use the more large motor power is better?
A: At our domestic market, we always using at the buff steps. Also some customers want to use at calibrating step, it is also ok.
Q: Why the first three and four heads is with different motor power?
A: Because some of customer's slabs/strips/tiles are not very flat, they need first three and four heads to do the slab/strips/tiles as calibrating.
