Features:

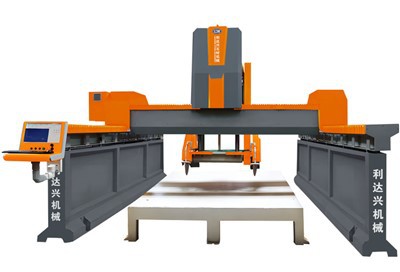

- The machine is controlled by numerical control system, combined with the strength of the imitatio machine and the walking speed and accuracy of the machining center.
- It has the advantages of high processing speed, high precision and high stability.
- Line processing, one-time molding, no manual dry polishing.
- CAD lines are imported directly without progarmming.
- it is suitable for processing stone curved line , shaped domes and curved surfaces of any shape, and can also be used for processing columns, vases, Roman Columns, and fences around cemeteries, etc.
- Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Model No. | LDX-SFX90350 | LDX-SFX120350 | LDX-SFXS90350 | |
| Blades Diameter | φ300～φ600 | φ500～φ800 | φ300～φ600 | mm |
| Max. Cutting Depth | 170 | 270 | 170 | mm |
| Blades Distance | 950 | 1250 | 950 | mm |
| Working Width | 900 | 1200 | 900 | mm |
| Main Motor Power | 22 | 22 | 22kw/pc*2pcs | kw |
| Motor Power(X-axis) | 2 | 2 | 2kw/pc*2pcs | kw |
| Motor Power(Y-axis) | 1.5kw/pcx2pcs | 1.5kw/pcx2pcs | 2kw/pc*2pcs | kw |
| Motor Power(Z-axis) | 3 | 3 | 3kw/pc*2pcs | mm |
| Total Power | 30 | 30 | 60 | kw |
| Overall Size | 5400*4215*3020 | 5400*4215*3020 | 5300*6500*3250 | mm |
| Stroke (X-axis) | 1600 | 1600 | 1600 | mm |
| Stroke (Y-axis) | 3500 | 3500 | 3500 | mm |
| Stroke (Z-axis) | 500 | 600 | 500 | mm |
| Working Size (X, Y& Z-axis) | 950*3400*550 | 1250*3400*550 | 950*3400*550 | mm |
| Water Consumption | 3 | 4 | 6 | m³/h |
Double servo Double planet reducer(X, Y axis) Z axis Four Guide Rail
Q1: Do you have more stone machines?
A: Yes, we can produce all series of stone processing machines with competitive price and high quality.
Q2: Do you have agent?
A: We don't have agent as we all sell directly to our customer, in this way, the customer can get lowest cost.
Q3: How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price.
