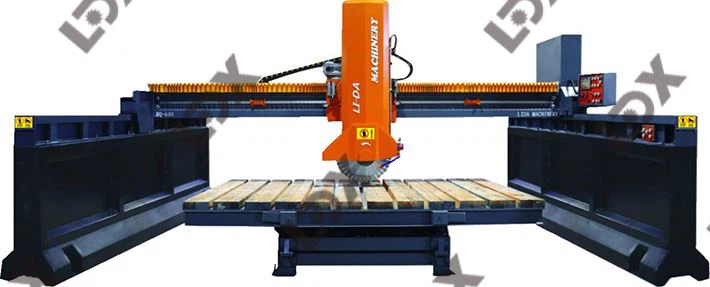

●The stone saw machine is equipped with rigid cutting work platform and double servo synchronous, P6 grinding titled gear, oil-immersed sealed guide way.
● It is a ideal equipment to process all kinds of stone products.
● The side beam of stone saw machine is equipped with protector and touching system.
● The stone saw machine has the performance of high cutting efficiency, high precision, high stability.
|
Description of automatic marble bridge saw |
unit |
LHD-450 |
LHD-600 |
LHD-800 |
|
Blade diameter |
mm |
Φ300-450 |
Φ250-600 |
Φ400-800 |
|
Max.vertical stroke |
mm |
350 |
400 |
450 |
|
Worktable dimension |
mm |
3200x2000 |
3200x2000 |
3200x2000 |
|
Worktable tilting degree |
n° |
0-85 |
0-85 |
0-85 |
|
Worktable rotating degree |
n° |
0-90/0-360 |
0-90/0-360 |
0-90/0-360 |
|
Max. cutting depth |
mm |
110 |
180 |
280 |
|
Water consumption |
m³/h |
1.8 |
1.8 |
1.8 |
|
Main motor power |
kw |
15 |
18.5 |
22 |
|
Total motor |
kw |
21 |
24 |
27.5 |
|
Overall dimension (LxWxH) |
mm |
6000x 4800x 3100 |
6000x 4800x 3300 |
6000x 4800x 3500 |
|
Gross weight |
kgs |
5400 |
5600 |
5800 |
Operation panel
Travel limited switch
RV90 Drive reducer
Hydraulic station with 7-ocean pump
Multi-groove belt
Four guide pillars with smooth sliding and small gaps
Bottom frame
Our Lida factory since 1990, were mainly focused on installation and reconstruct, automatization, easy-operational of imported stone equipment. After years technique experience accumulation, the design and manufacture from here become to be more and more favorable.
Now we are concentrate to offer high quality equipment with competitive price, including cutters, polishing machines, we focus on technology, quality producing, service, customer feedback and long-term relationship.
Thanks to years' experience in these particular fields, we can ensure high level performance to all the customer. Also the goal of Lida is to help people who like to be surrounded by beautiful things.
Q: Are you a manufacturer or trading company?
A: We are the largest stone machine manufacturer in northern China.And we can provide one-stop shopping service.
Q: Can I become a distributor?
A: Yes, we have special discount for distributor.
Q: After I bought the machines , how I can install and operate it ?
A: We strongly suggest customer to ask our engineer to come to help you to install the machines and teach your operator how to operate and maintain it .
