Multiple Blade Kerbstone Block Cutting Machine

The multi-blade kerbstone block cutting machine is an innovative machine that is designed for efficient cutting of blocks. The machine is equipped with a sturdy bridge structure and a logical control system that ensures a stable performance. The bridge structure of the machine is made of high-quality materials that are strong and durable. This structure provides adequate support and stability to the cutting blades. The logical control system, on the other hand, is designed to ensure that the cutting process is smooth and consistent.

Send Inquiry

Description

Description:

Blade combinations in different diameters work simultaneously;
Complete with hydraulic lifting system (optional)The lifter moving up and down is driven
Four guide pillars by oil hydraulic pressure cylinder (or by lead screw).;(It has screw-rod lifting system and hydrauliclifting system for choice.)
Complete with oil-immersed guide rail for crossbeam and side beam;

With interlocking mechanism, the electrical system is safe and reliable.

Model No.	unit	LHD-2800	LHD-3200	LHD-3500
Main Motor Power	kw	37	45	55
Diameter of saw blade	mm	Φ1600-2500	Φ1600-2800	Φ1600-3000
Elevation travel of motor	mm	1300	1400	1450
Slicing stroke	mm	2200	2200	2200
Cutting stroke	mm	4500	4500	4500
No.s of Blade	N°	1-12	1-14	1-14
Total motor	kw	42.2	50.2	50.2
Overall dimension(LxWxH)	mm	7500x3500x2800	7500x4000x3000	7500x4200x3500
Max.working size	mm	4300x2200x2500	4300x2150x3000	4300x2150x3000

5 600kb

water cover

3 600kb

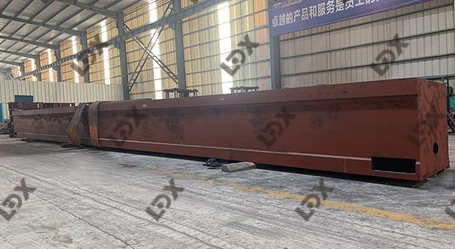

main beam

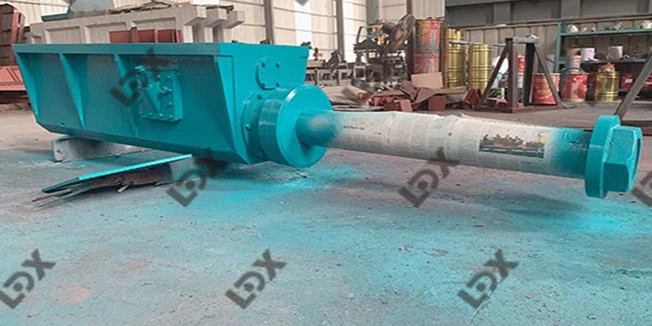

Robust Beam Main Spindle

Our Lida factory since 1990, were mainly focused on installation and reconstruct, automatization, easy-operational of imported stone equipment. After years technique experience accumulation, the design and manufacture from here become to be more and more favorable. Now we are concentrate to offer high quality equipments with competitive price, including cutters, polishing machines, we focus on technology, quality producing, service, customer feedback and long-term relationship. Thanks to years' experience in these particular fields, we can ensure high level performance to all the customer. Also the goal of Lida is to help people who like to be surrounded by beautiful things.

Q1: How long does it take to receive the goods?

A: Typically, it takes 20 to 25 days for the goods to be ready after advance payment. The exact delivery time will be informed once the orders are confirmed.

Q2: Can you help us find a set of tools?

A: Sorry, our quotation does not include tools. However, we can provide advice on where to find them or customers can purchase them on their own.

Q3: Is it possible to have a rotatable worktable?

A: Our machine is designed to be placed on the ground for direct cutting. However, if needed, we can provide a 360 degree rotating worktable.
